Long-range Electronic Skateboard
Comes standard with 10S2P 18650 42V 6.6A 280Wh Quick Swappable battery, Extends the range with more batteries.

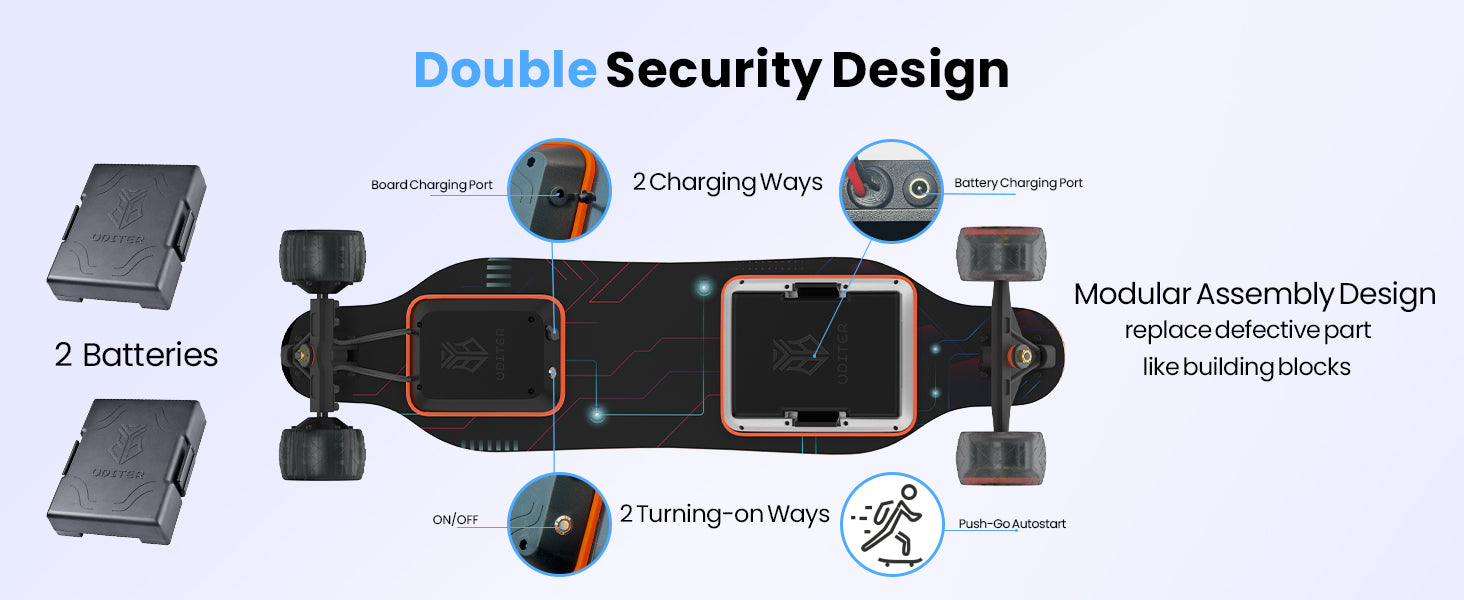

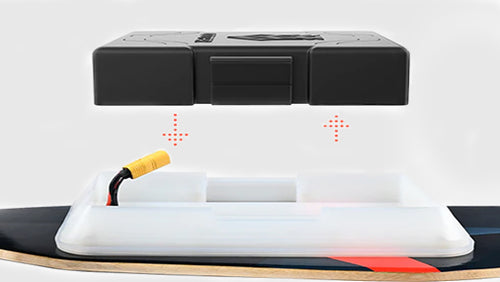

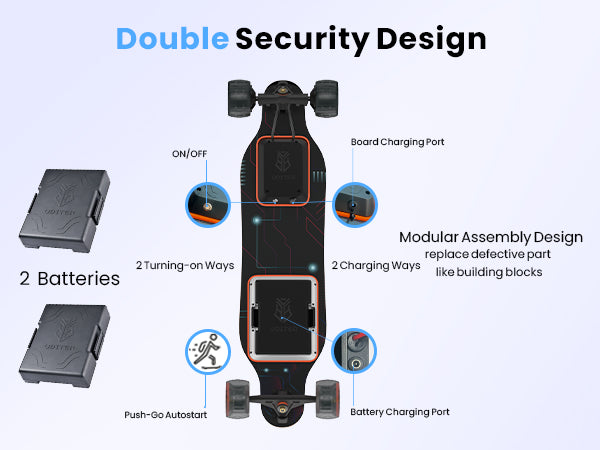

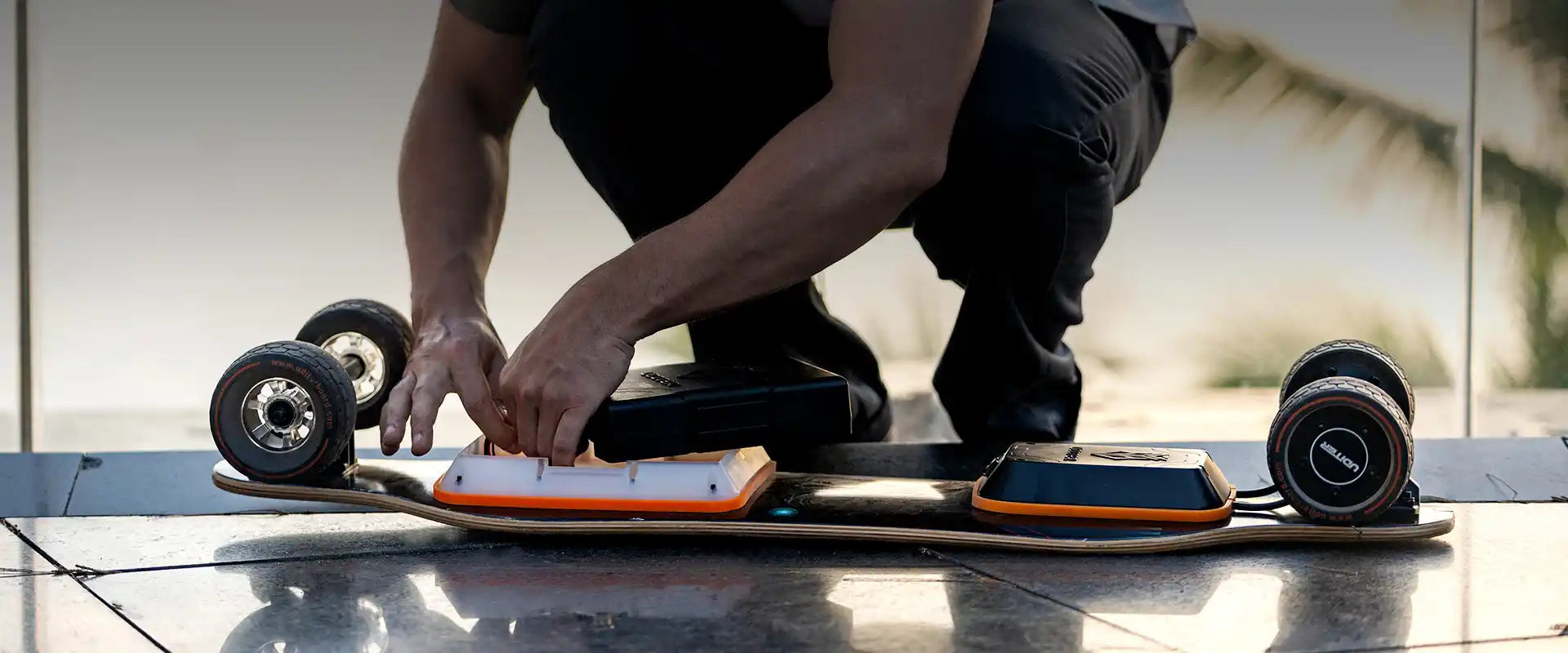

Firmly Locked Quick-swappable Batteries
The battery is locked under the deck firmly by the patented lock structure of the UDITER,while enabling effortless single-handed removal. It only takes 5 seconds to rapidly and conveniently swap out the depleted battery

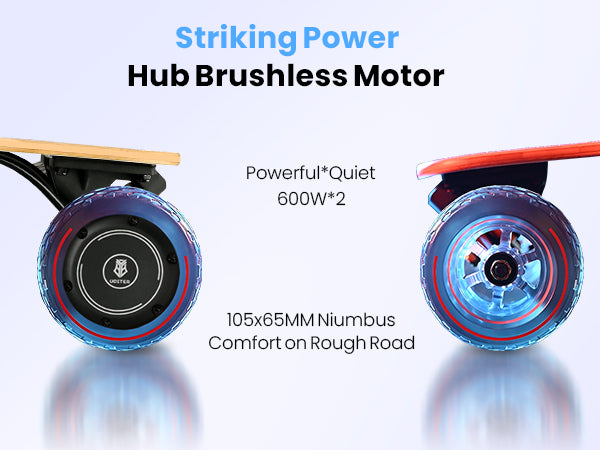

2X600W Hub Motors

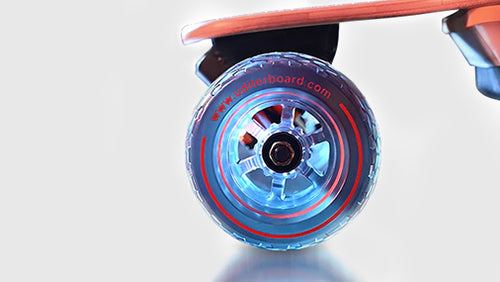

S3 utilizes two 600W permanent magnet HUB motors to provide powerful power. With the 105*62mm big size 78A high resilience wear-resistance PU wheels, the S3 is able to smoothly pass most roads.
Top speed: 28 MPH

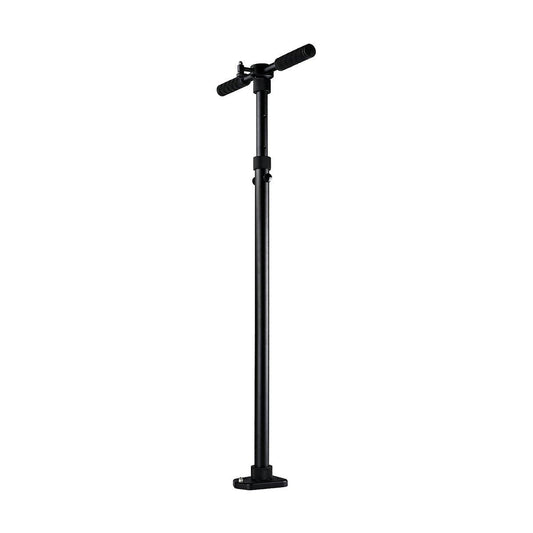

Multifunctional Handlebar
The adjustable multifunctional handlebar helps users to keep balance and is very helpful for beginners to learn to ride a skateboard.

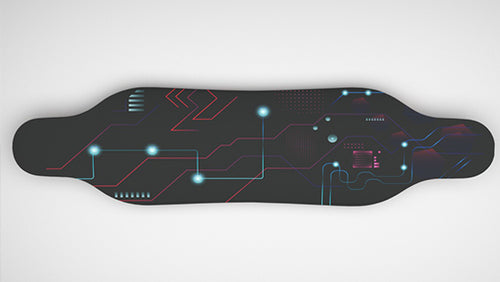

Deck
2-layer bamboo and 5-layer maple wood gives the deck proper hardness and super resilience absorbing most of the vibrations, greatly improving the stability and comfort of the S3.
Maximum Load: 330lbs/150kg.

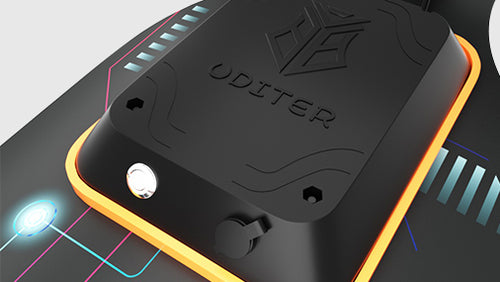

LinYi 2.0 ESC
The S3 uses smarter algorithms to distribute power and regenerate energy from braking to extend the max range. Compared with LinYi 1.0, 21% more energy saved and 37% less responsive time decreased.

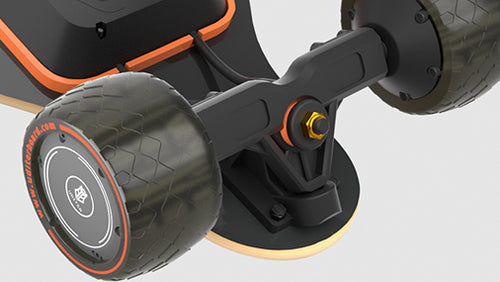

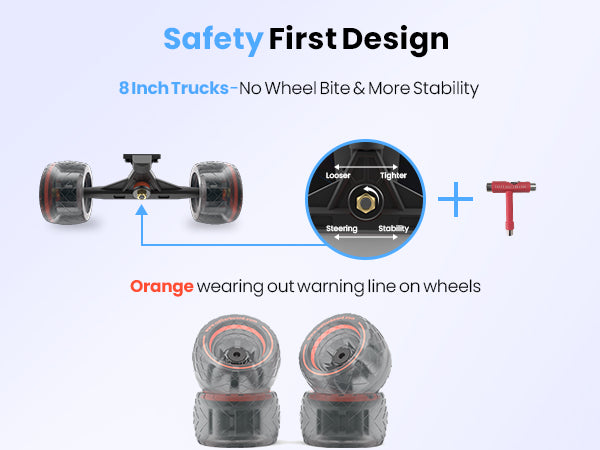

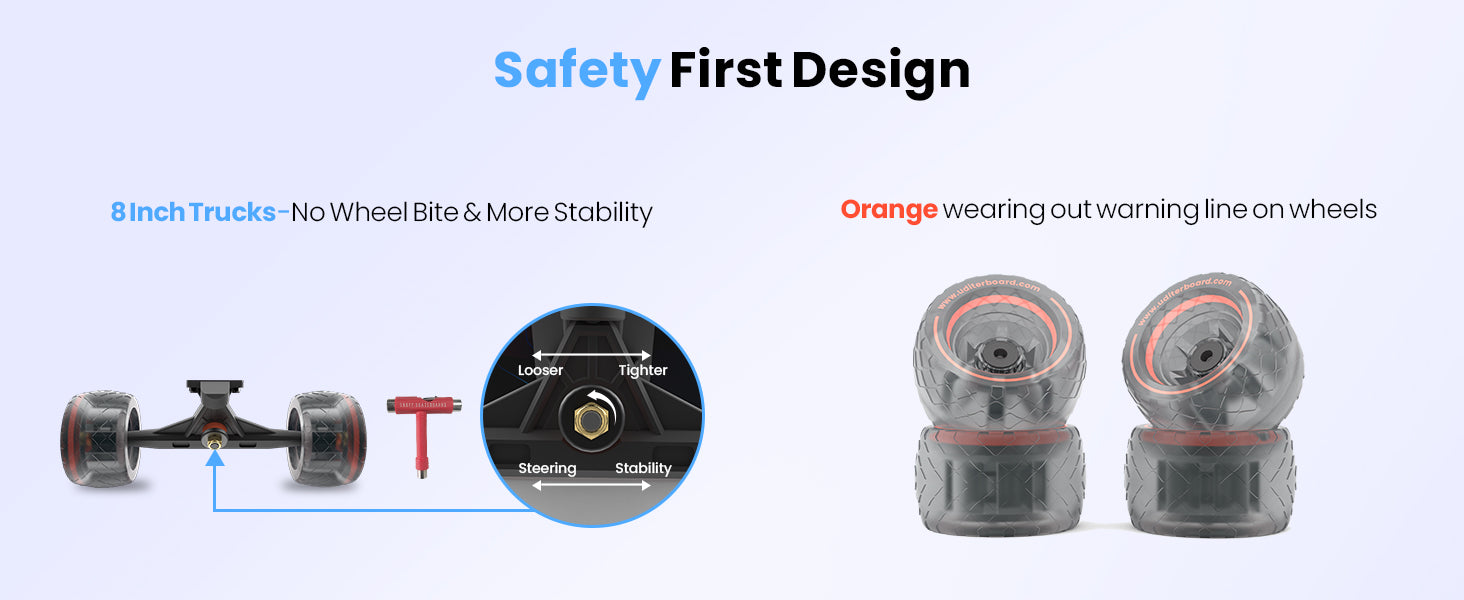

Flexible Steering Truck
The truck S3 has a 45-degree inclination with double pillars and a double 98A high-resilience bushing structure, which makes the S3 better flexible steering. The up to 98A double high-resilience bushing supports the S3 back to balance quickly when turning, offering a better riding experience.

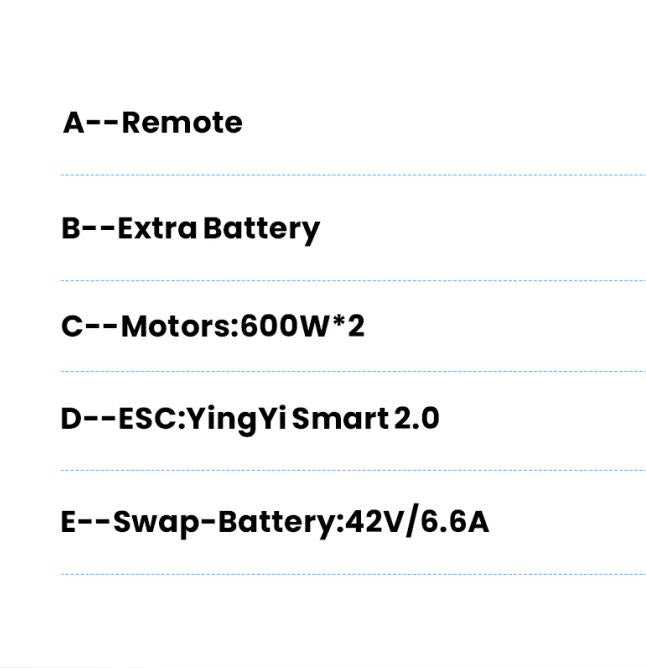

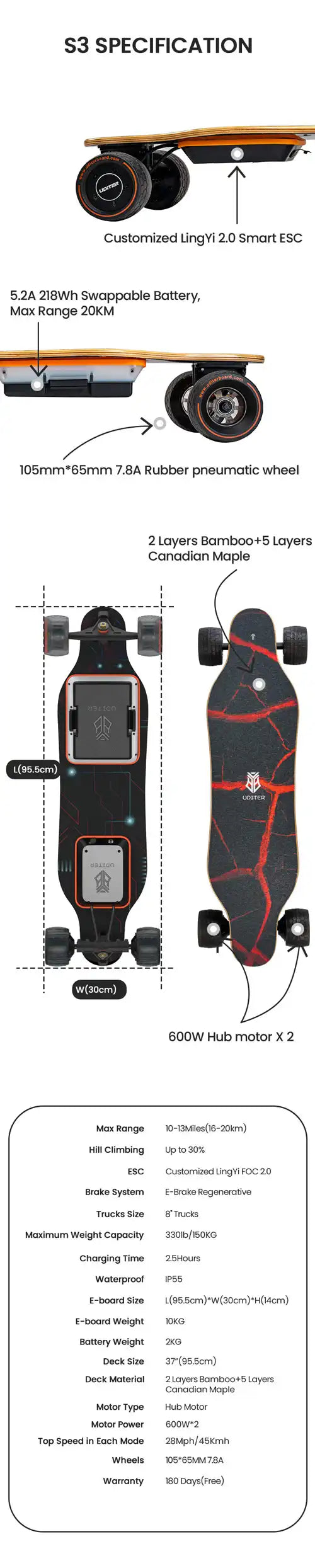

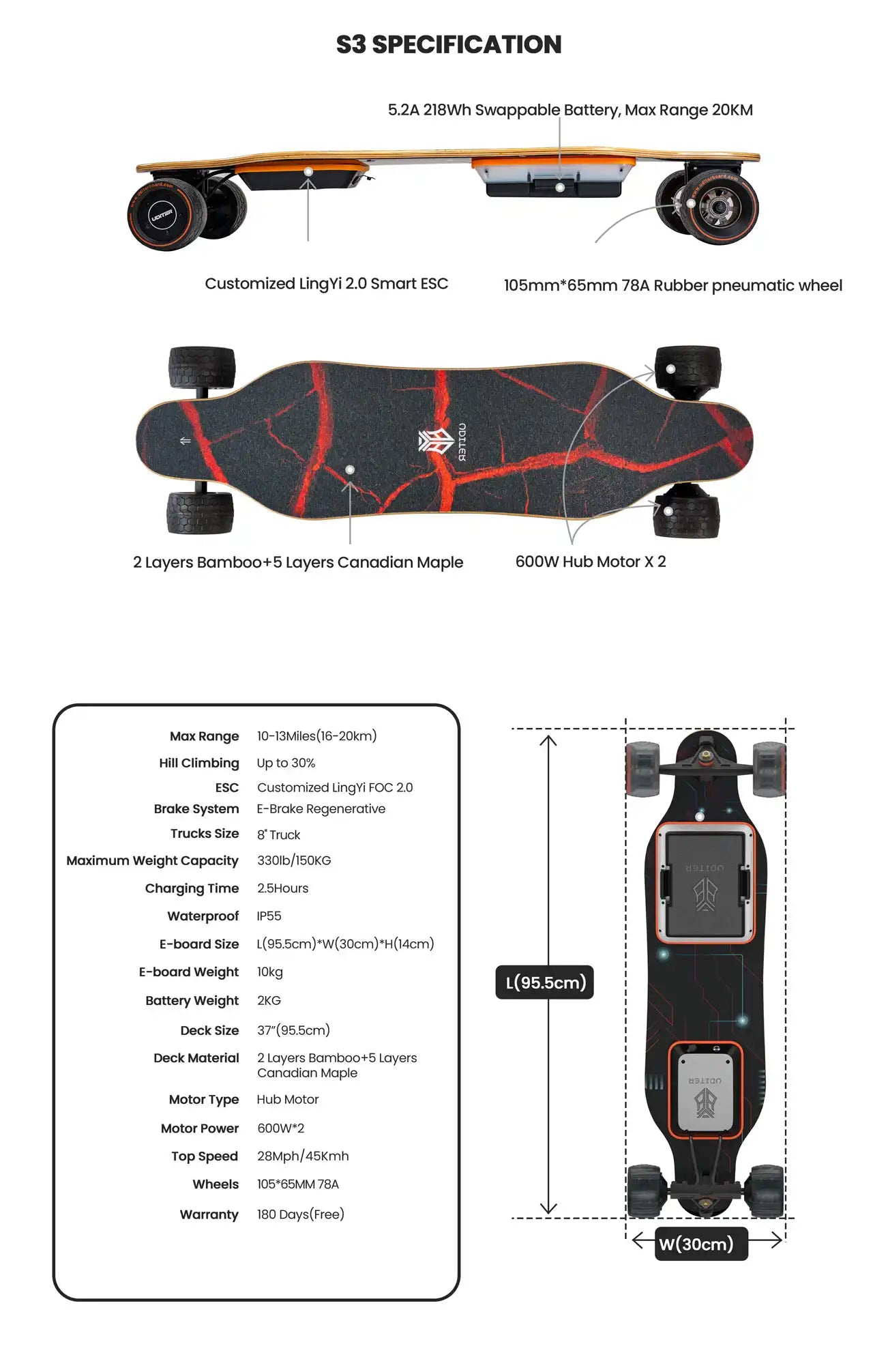

UDITER S3 Specifications
Skateboard Size | 97cm *27.5cm*13.5cm / 38.2*10.8*5.3 inch |
Wheel Size | 105*65MM |
Motor | 600W*2 Hub |
Max Range | 35Miles(2 batteries) Based on a 60KG man riding on a flat road with a cruising speed at 15Mph |
Top Speed | 28Mph/45Kmh |
Load Weight | 330lbs/150kg |
Deck | 38''(97 cm) 2 Layers Bamboo+5 Layers Maple Wood |
Net Weight | 18.3lbs/8.3kg |
Swappable Battery | 10S2P 18650 42V 6.6A 280Wh (Aviation Plugs) |
ESC | Linyi 2.0 Smart ESC |
Trucks | 8'' High tensile CNC magnesium-aluminum alloy |
Charging Time | 4H |
Warranty | 180 days |
FAQ
Just assemble the base on the front of the electric skateboard, and then manually screw the nut firmly, and you can assemble your handlebar.
How to install the camera to the camera mount?
You only need to fix the relevant accessories on the screws at the specified position.

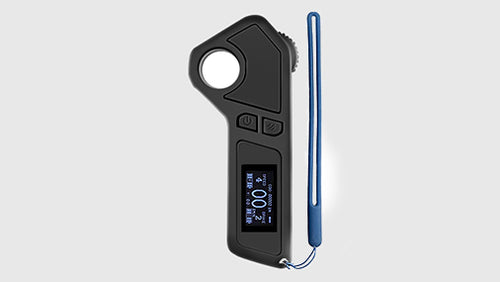

Press and hold the switch button of the electric skateboard for 10 seconds. When the light on the switch button starts to flicker, turn on the remote control, and press the Power button and the Reverse button quickly at the same time. At this time, the remote control will vibrate once, indicating that your remote control is connected to the electric motor. The skateboard has established a connection. (This function will be set to OK when the skateboard leaves the factory, and no further operation is required in the future).
330 lbs for all models (However, please do not try to jump on the board or break it with additional strength).
You can adjust the tightness of the nut at the front of the truck by using a T wrench. Loosen the nut to make the steering flexible. Tightening the nut will make the steering stiff.
